CCTV Cable for Elevator, flat traveling video cable, ECHU Flat Cable

Name: CCTV Cable for Elevator flat traveling video cable ECHU Flat Cable
Brand: ECHU or OEM
Price: 0.217 USD

Quality CCTV Cable for Elevator, flat traveling video cable, ECHU Flat Cable wholesale

Place of Origin : Shanghai, China

Brand Name : ECHU or OEM

Certification : CCC, CE

MOQ : 300M

Price : USD0.217-USD1.598/m

Packaging Details : Splint Reels

Delivery Time : 7 days after receiving advance payment

Payment Terms : Western Union, T/T

Model Number : TVVBG-TV

Supply Ability : 100000km/week

TVVB2G : 2Cx1.0sqmm+TV

Insulation : PVC

Jacket : PVC

Conductor : Stranded Copper

Contact Now

Flat Elevator Cable with Communication Cable

Flat Travel Cable with Video Cable CCTV Cable for Elevator

PRODUCT STANDARD
GB5023.6-1997
PRODUCTION APPLICATION
Elevator suspension flat travel cable for internal and panoramic elevators.
RATED VOLTAGE
This product is fit for the rated 300/500V and below.
WORK TEMPERATURE:
Used under the normal conditions, the conductor' s temperature is at 70. The cable is available at -15 to 40 environment.
OTHER ATTENTIONS
Without steelFree suspension length not exceed 80 meters, and the lift speed must not exceed 4m/s.
With steelFree suspension length exceed 80 meters, and the lift speed must not exceed 10m/s.

Flat traveling cable with 75ohm cable

Flat traveling cable with video cable

Type	Specification	Outside Diameter(mm)
TVVB2G	75-5+2X1.0	22.9±1.0×9.3±0.5
TVVB2G	75-5+2X0.75	22.9±1.0×9.3±0.5
TVVB1G	75-3+2X0.75	17.0±1.0×6.5±0.5
TVVB2G	SYV75-5-2	13.3±1.0×7.1±0.5
SYV2G	75-5-2	8.1±0.5×3.7±0.2

We also can design according to your requirement

CCTV Cable for Elevator, flat traveling video cable, ECHU Flat Cable

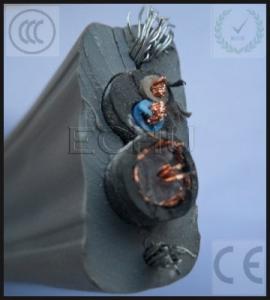

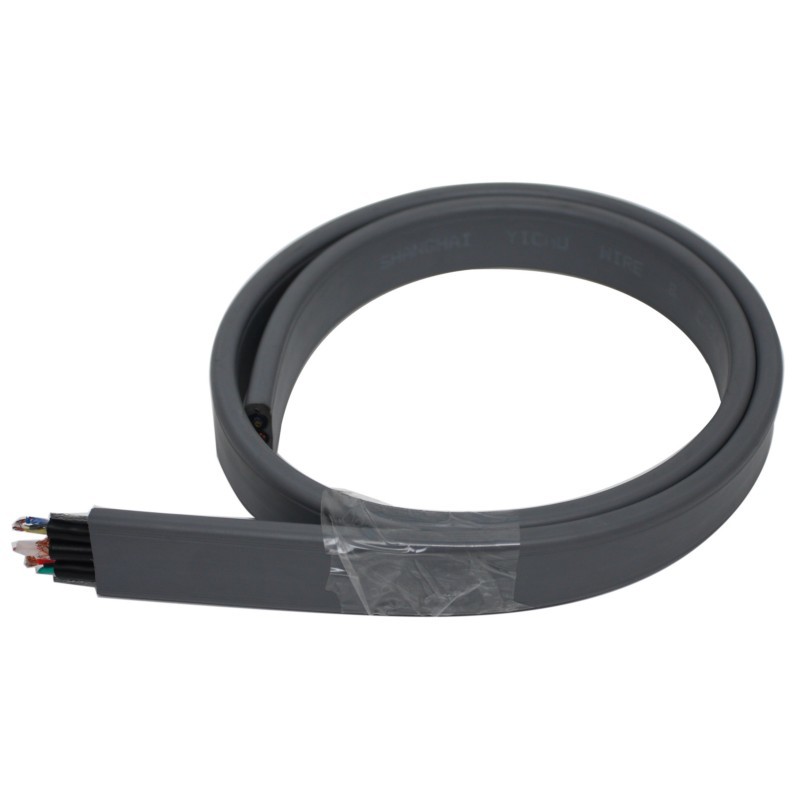

CCTV Cable for Elevator, flat traveling video cable, ECHU Flat Cable Images
